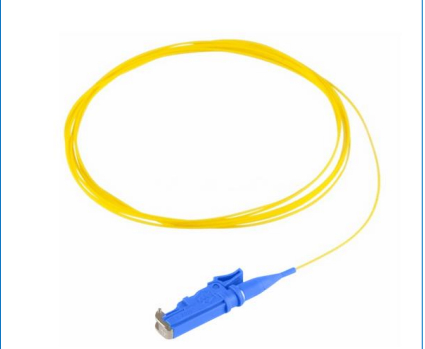

EC Pigtail LSZH/PVC SM/MM
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन, शेन्ज़ेन |
| ब्रांड नाम: | DF/OEM/Nuetral |
| प्रमाणन: | CE/ROHS/REACH/ISO9001/ISO14001 |
| मॉडल संख्या: | टीके-पीसी-48एफ-एससी-ओएस2-50एम |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | बातचीत योग्य |
|---|---|
| मूल्य: | negotiable denpend on QTY |
| पैकेजिंग विवरण: | ब्लिस्टर बॉक्स+कार्टन |
| प्रसव के समय: | 5-9 कार्य दिवस मात्रा पर निर्भर करता है |
| भुगतान शर्तें: | वेस्टर्न यूनियन, टी/टी, मनीग्राम/पेपैल |
| आपूर्ति की क्षमता: | 1000pcs/दिन |
|
विस्तार जानकारी |
|||
| प्रोडक्ट का नाम: | ईसी पिगटेल | अंतर्विरोध हानि: | ≤0.3dB |
|---|---|---|---|
| वापसी हानि: | यूपीसी एसएम≥50 डीबी, एपीसी एसएम≥ 60 डीबी, पीसी एमएम ≥ 35 डीबी | फाइबर प्रकार: | कॉर्निंग एसएम G652D |
| फैनआउट व्यास: | 1.6मिमी/2.0मिमी | कनेक्टर प्रकार: | एससी/यूपीसी |
| जैकेट सामग्री: | LSZH/PVC | रंग: | पीला या अनुकूलित |
| वेवलेंथ: | 1310 एनएम, 1550 एनएम | लंबाई: | 10M, 20M या अनुकूलित |
| प्रचालन तापमान: | -20 ℃ ~ 70 ℃ | फाइबर व्यास: | 9/125 |
| फाइबर ब्रांड: | कॉर्निंग, वाईओएफसी, ओएफएस, ड्रेका | ||
उत्पाद विवरण
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
| End face type | UPC and APC |
|---|---|
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 0.9 mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N 2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can i get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We"ll show you the photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
