LC Quad Fiber Optic Adapter Singlemode Multimode APC UPC
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | OEM |
| प्रमाणन: | CE/REACH/RoHS |
| मॉडल संख्या: | TK-FOA-LCD-888 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 100 |
|---|---|
| मूल्य: | 0.50USD |
| पैकेजिंग विवरण: | कार्टन बॉक्स 55*40*35 सेमी |
| प्रसव के समय: | 3 ~ 5 दिन |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | 100000/सप्ताह |
|
विस्तार जानकारी |
|||
| निविष्ट वस्तु का नुकसान: | ≤0.2dB | फाइबर गिनती: | कुद |
|---|---|---|---|
| रंग: | नीला/एक्वा/गुलाब/हरा/बेज/चूना हरा | परिचालन तापमान: | -40 ~ 85 ℃ |
| प्रमुखता देना: | LC duplex fiber adapter single mode,fiber optic adapter APC UPC,single mode LC duplex adapter |
||
उत्पाद विवरण

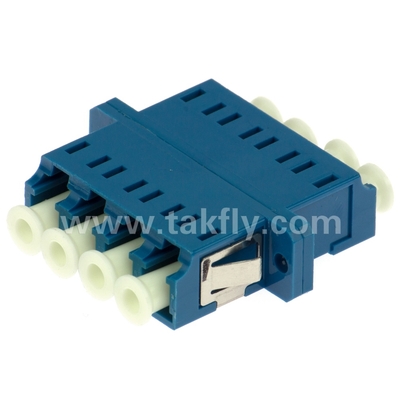

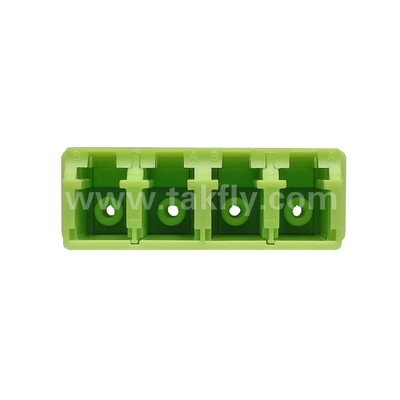

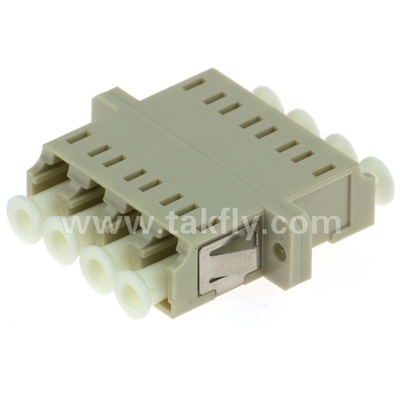

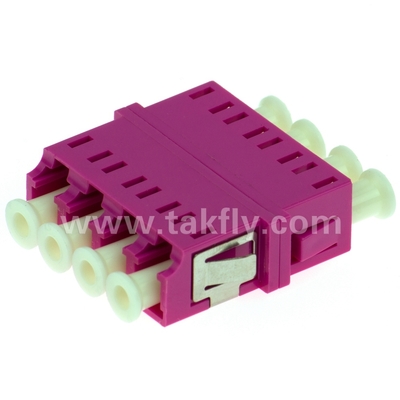

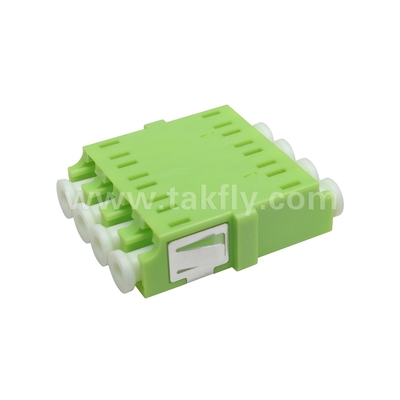

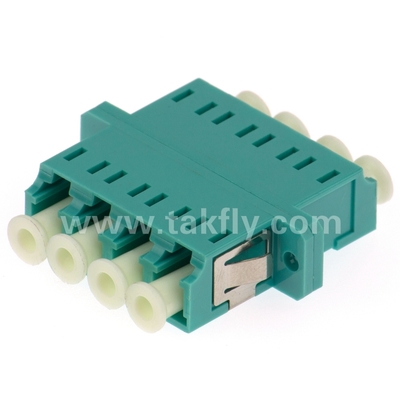

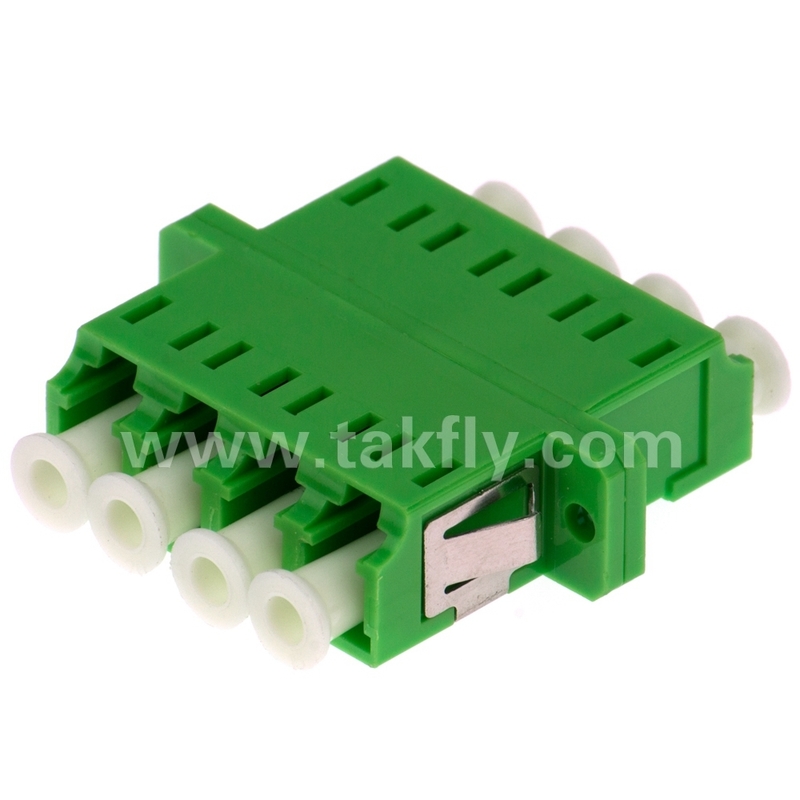

LC Quad Fiber Optic Adapter Singlemode Multimode APC UPC
Product Attributes
| Attribute | Value |
|---|---|
| Insertion loss | ≤0.2dB |
| Fiber count | Quad |
| Color | Blue/Aqua/Rose/Green/Beige/Lime green |
| Operating temperature | -40~85℃ |
Product Description
The LC Quad Fiber Optic Adapter is designed for connecting fiber optic connectors, efficiently coupling output power from transmitting fiber to receiving fiber. It serves as a reliable solution for cable-to-cable or cable-to-equipment connections in various network configurations.
Key Features
- Single mode and Multimode compatibility
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- Patch panel mount applications
- Compliant with JIS5974 and Bellcore GR-326 standards
- Meets IEC874-14 & IEC874-19 specifications
- All parts compliant with ROHS
Technical Specifications
| Product | LC Adapter |
|---|---|
| Mode | SM | MM |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Mating Durability (500 times) | Additional Loss ≤0.1dB |
| Temperature Stability (-40℃～85℃) | Additional Loss ≤0.2dB |
| Operating Temperature | -40℃～+85℃ |
| Storage Temperature | -40℃～+85℃ |
TAKFLY LC adapters feature easy installation, low insertion loss, excellent interchangeability, and superior resistance to both high and low temperatures.
