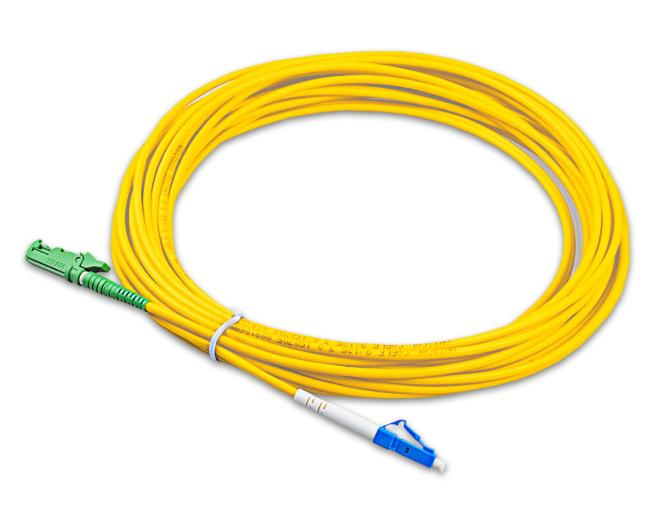

EC-LC Fiber Optic Patch cord UPC/APC LSZH/PVC Jacket
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन, शेन्ज़ेन |
| ब्रांड नाम: | DF/OEM/Nuetral |
| प्रमाणन: | CE/ROHS/REACH/ISO9001/ISO14001 |
| मॉडल संख्या: | टीके-पीसी-48एफ-एससी-ओएस2-50एम |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | बातचीत योग्य |
|---|---|
| मूल्य: | negotiable denpend on QTY |
| पैकेजिंग विवरण: | ब्लिस्टर बॉक्स+कार्टन |
| प्रसव के समय: | 5-9 कार्य दिवस मात्रा पर निर्भर करता है |
| भुगतान शर्तें: | वेस्टर्न यूनियन, टी/टी, मनीग्राम/पेपैल |
| आपूर्ति की क्षमता: | 1000pcs/दिन |
|
विस्तार जानकारी |
|||
| प्रोडक्ट का नाम: | ईसी-एलसी फाइबर ऑप्टिक पैच कॉर्ड | अंतर्विरोध हानि: | ≤0.3dB |
|---|---|---|---|
| वापसी हानि: | यूपीसी एसएम≥50 डीबी, एपीसी एसएम≥ 60 डीबी, पीसी एमएम ≥ 35 डीबी | फाइबर प्रकार: | एसएम (जी652、जी655、जी657); एमएम (ओएम1-ओएम5) |
| केबल व्यास: | 2.0、3.0 या अनुकूलित (सिंप्लेक्स/डुप्लेक्स) | कनेक्टर प्रकार: | एससी/यूपीसी |
| जैकेट सामग्री: | LSZH/PVC | रंग: | पीला या अनुकूलित |
| वेवलेंथ: | 1310 एनएम, 1550 एनएम | लंबाई: | 10M, 20M या अनुकूलित |
| प्रचालन तापमान: | -20 ℃ ~ 70 ℃ | फाइबर व्यास: | 9/125 |
| फाइबर ब्रांड: | कॉर्निंग, वाईओएफसी, ओएफएस, ड्रेका | ||
उत्पाद विवरण
EC-LC Fiber Optic Patch cord UPC/APC LSZH/PVC Jacket
Description
Fiber optic patch cord is the cable with both ends terminated with fiber optic connectors, which realizes the connection between optic networking equipment and equipment, and equipment and patch cords. Easy operation and convenience make it indispensable as one of the passive products for optic networking construction.
Fiber Optic Patchcord Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Fiber Optic Patchcord Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Fiber Optic Patchcord Specifications
| End face type | UPC and APC |
|---|---|
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter |
2.0,3.0 or customized (Simplex/duplex)
|
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N 2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |
Patchcord Picture
Why choose TAKFLY
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
