FIBER OPTIC TERMINATION BOX TK-1806-04B
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन, शेन्ज़ेन |
| ब्रांड नाम: | DF/OEM/Nuetral |
| प्रमाणन: | CE/ROHS/REACH/ISO9001/ISO14001 |
| मॉडल संख्या: | टीके-पीसी-48एफ-एससी-ओएस2-50एम |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | बातचीत योग्य |
|---|---|
| मूल्य: | negotiable denpend on QTY |
| पैकेजिंग विवरण: | ब्लिस्टर बॉक्स+कार्टन |
| प्रसव के समय: | 5-9 कार्य दिवस मात्रा पर निर्भर करता है |
| भुगतान शर्तें: | वेस्टर्न यूनियन, टी/टी, मनीग्राम/पेपैल |
| आपूर्ति की क्षमता: | 1000pcs/दिन |
|
विस्तार जानकारी |
|||
| प्रोडक्ट का नाम: | फाइबर ऑप्टिक टर्मिनेशन बॉक्स टीके-1806-04बी | कार्य तापमान: | 40 ℃ ~ + 85 ℃ |
|---|---|---|---|
| सापेक्षिक आर्द्रता:: | एस85%(+30℃) | वायु - दाब: | 70 केपीए ~ 106 केपीए |
| निविष्ट वस्तु का नुकसान: | s0.2dB | यूपीसी रिटर्न लॉस: | >=50dB |
| एपीसी रिटर्न लॉस: | >=60dB | सम्मिलन और निष्कर्षण का जीवन फाइबर गिनती: | >=1000 बार |
| फाइबर ब्रांड: | कॉर्निंग, वाईओएफसी, ओएफएस, ड्रेका | ||
| प्रमुखता देना: | Fiber optic termination box TK-1806-04B,Fiber optic termination box with warranty,Fiber optic termination box for splicing |
||
उत्पाद विवरण

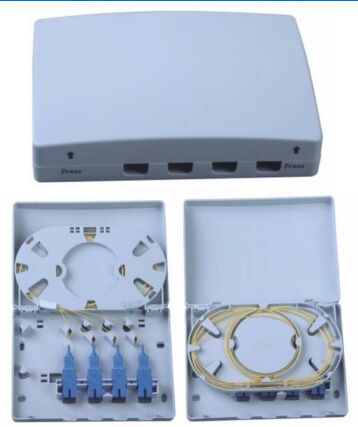

This fiber optic termination box serves as a termination point for connecting feeder cable with drop cable in FTTx communication network systems. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one compact unit while providing solid protection and management for FTTx network infrastructure.
- Telecommunication subscriber loop
- Fiber to the home (FTTH)
- LAN/WAN networks
- Total enclosed structure with sleek design
- Effective cable protection and management with screw lock
- Standard size with light weight construction
- High quality ABS material
- Integrated clamping for feeder and drop cables
- Comprehensive fiber splicing, fixation, storage, and distribution
- Compatible with SC and LC duplex adaptors and pigtails
- Easy to operate and install
- Suitable for indoor applications
| Work Temperature | -40°C to +85°C |
| Relative Humidity | ≤ 85% (+30°C) |
| Atmospheric Pressure | 70Kpa to 106Kpa |
| Insert Loss | ≤ 0.2dB |
| UPC Return Loss | ≥ 50dB |
| APC Return Loss | ≥ 60dB |
| Insert and Pull out Life | ≥ 1000 times |
| Insulation Withstand Voltage | Grounding device insulated with termination box, IR ≥1000mΩ/500V (DC). Between grounding device and box body, withstand voltage over 3000V/Min, no breakdown or flashover. U ≥3000V (DC) |
- 25+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
A3: Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
A5: If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
A6: We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
A7: T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
A8: EXW, FOB, CFR, CIF, DDU
A9: Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
A10: Yes, we can manufacture products based on your samples or technical drawings.
