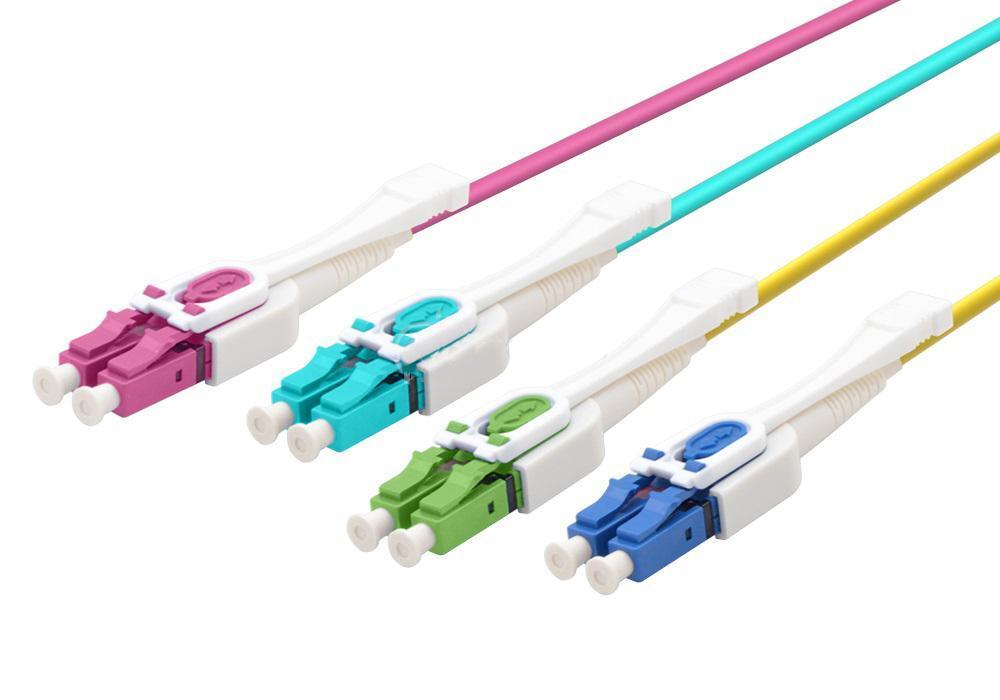

LC-LC Polarity switchable Uniboot Patch cord
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | शेनझेन, चीन |
| ब्रांड नाम: | Takfly/OEM |
| प्रमाणन: | CE, ROHS, REACH |
| मॉडल संख्या: | एलसी-एलसी यूनिबूट कनेक्टर |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 100 पीसी |
|---|---|
| मूल्य: | Can be negotiated |
| पैकेजिंग विवरण: | स्पोन + बॉक्स + कार्टन |
| प्रसव के समय: | 3-7कार्य दिवस |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | प्रति माह 50000 पीसी |
|
विस्तार जानकारी |
|||
| नाम: | फाइबर ऑप्टिक कनेक्टर | प्रकार: | एलसी-एलसी यूनिबूट कनेक्टर |
|---|---|---|---|
| अंत चेहरा प्रकार: | यूपीसी | तरीका: | एसएम（जी652、जी655、जी657）；एमएम（ओएम1-ओएम5） |
| निविष्ट वस्तु का नुकसान: | ≤ 0.3db | वापसी हानि: | यूपीसी एसएम ≥ 50डीबी 、यूपीसी एमएम ≥ 35 डीबी |
| परिचालन तापमान: | -20 ℃ ~+60 ℃ | भंडारण तापमान: | -20 ℃ ~+60 ℃ |
| सामी: | 1.25 मिमी (सीसीटीसी)। | ||
| प्रमुखता देना: | LC-LC uniboot fiber patch cord,polarity switchable fiber optic cable,LC-LC uniboot patch cord with warranty |
||
उत्पाद विवरण
LC-LC Polarity Switchable Uniboot Patch Cord
High-performance fiber optic patch cord featuring polarity switchable uniboot design for efficient cable management and reliable connectivity.
Technical Features
- Low insertion loss and high reflection loss
- Polarity switchable
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Technical Parameters
| Parameter | Specification |
|---|---|
| End face type | UPC |
| Fiber type | SM (G652,G655,G657); MM (OM1-OM5) |
| Cable Diameter | 2.0/3.0mm or customized |
| Insertion loss | ≤ 0.3dB |
| Return loss | UPC SM ≥ 50dB, UPC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Strength Member | Kevlar |
| Tensile strength | >60N |
| Ferrule | 1.25mm (CCTC) |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -20℃~60℃ |
| Outer Sheath Material | PVC, LSZH |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
Relevant Solutions
Easy operating connector for direct use in ONU applications, with fasten strength exceeding 5 kg. Widely used in FTTH projects for network revolution, reducing socket and adapter requirements to save project costs.
Compatible with 86 standard sockets and adapters, enabling connections between drop cables and patch cords. The 86 standard socket provides complete protection through its unique design.
Technical Support and Services
- Assist customers in finding the right fiber optic connector for their applications
- Provide technical consultation and advice on fiber optic connector installation
- Offer after-sale service and maintenance for our fiber optic connectors
- Ensure the highest quality of fiber optic connector products
- Provide 24/7 customer service
- Provide warranty services for our fiber optic connectors
Packaging and Shipping
- Packaged in cardboard box with foam padding for protection
- Shipped via reliable carrier
- All orders shipped within 24 hours of payment
Frequently Asked Questions
What is the Brand Name of this Fiber Optic Connector?
The Brand Name is Takfly/OEM.
What is the Model Number of this Fiber Optic Connector?
The Model Number is Fiber Optic Fast Connector.
Where is this product made?
This product is made in Shenzhen, China.
What is the purpose of this Fiber Optic Connector?
This Fiber Optic Connector is used to connect fiber optic cables quickly and easily.
What type of fiber optic cables can this Connector be used with?
This Connector can be used with single mode and multimode fiber optic cables.
