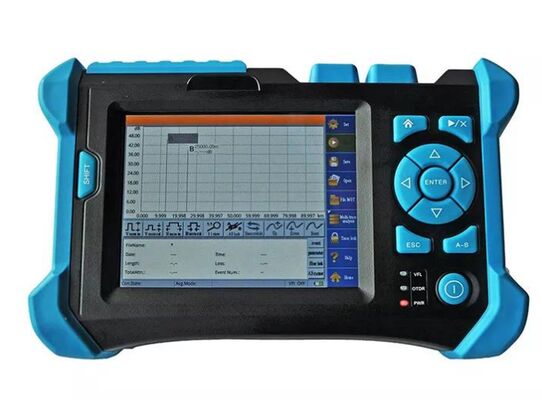

Optical Time Domain Reflectometer otdr Large Touch Screen Shortcut Keys Easy To Operate
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन, शेन्ज़ेन |
| ब्रांड नाम: | Takfly/OEM |
| प्रमाणन: | CE,ROHS,REACH,ISO9001,ISO14001 |
| मॉडल संख्या: | ऑप्टिकल टाइम डोमेन रिफ्लेक्टोमीटर |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा |
|---|---|
| मूल्य: | can be negotiable |
| पैकेजिंग विवरण: | स्पोन + बॉक्स + कार्टन |
| प्रसव के समय: | 3-7कार्य दिवस |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | प्रति माह 50000 पीसी |
|
विस्तार जानकारी |
|||
| प्रोडक्ट का नाम: | ऑप्टिकल टाइम डोमेन रिफ्लेक्टोमीटर | वज़न: | 1.5 किलो |
|---|---|---|---|
| चलने का तापमान: | -10°C से 50°C | स्मृति तापमान: | -40°C से 70°C |
| अधिकतम परीक्षण दूरी: | 3 किमी | आयाम (H x W x D): | 150 x 235 x 66 मिमी |
| प्रमुखता देना: | OTDR fiber optic tester with touch screen,optical time domain reflectometer shortcut keys,large screen OTDR for fiber testing |
||
उत्पाद विवरण
Optical Time Domain Reflectometer (OTDR)
Product Overview
Advanced Optical Time Domain Reflectometer featuring large touch screen with shortcut keys for easy operation, designed for comprehensive fiber optic network testing.
- Large touch screen + shortcut keys for intuitive operation
- High-capacity polymer lithium battery with extended working hours
- Intelligent testing with simple operation and powerful functionality
- Memory Card + SD card media with extensive trace storage capacity
- Comprehensive FTTx testing capabilities
- Multiple wavelength options available
- Robust solid casing design with dustproof and shockproof protection
Enhanced Performance Benefits
More powerful performance, much easier operation, more efficient work.
Designed to meet measurement requirements across FTTx, Metropolitan Area Networks, Backbone Networks, and other optical network applications.

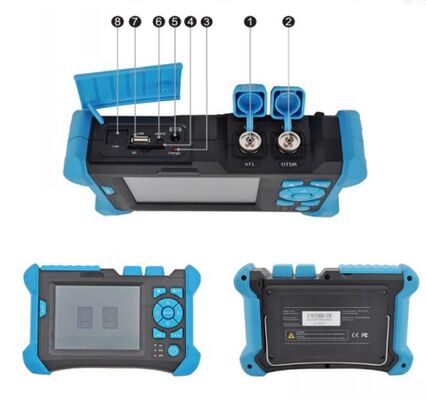

Interface Identification
- ① Optical interface 1/VFL
- ② Optical interface 2/OTDR
- ③ Charging indicator
- ④ SD card interface
- ⑤ Power adapter interface
- ⑥ Earphone interface
- ⑦ USB interface
- ⑧ Ethernet interface
Technical Specifications
| Parameter | Specifications |
|---|---|
| Wavelength (nm) | 850/1300, 1310/1550, 1310/1490/1550, 1625 |
| Dynamic Range (dB) | 21/19, 32/30, 32/30/30, 344, 365 |
| Pulse Width (ns) | 5, 10, 20, 40, 80, 160, 320, 640, 1280, 2560, 5120, 10240, 20480 |
| Event Blind Zone (m) | 10, ≤1.8 |
| Attenuation Blind Zone (m) | 20, ≤10 |
| Display | 5.6" LCD Touch Screen |
| Linearity (dB/dB) | ±0.05 |
| Loss Threshold (dB) | 0.05 |
| Loss Resolution Ratio (dB) | 0.01 |
| Sampling Resolution Ratio (m) | 0.125 to 8 |
| Sampling Point | 32K |
| Distance Uncertainty (m) | ±(1 m + 5 × 10 × distance + sampling interval) |
| Distance Scope (km) | 0.3 to 180 |
| Typical Real-time Refreshing Duration (s) | 0.2 |
| Memory Capacity of Trace | SD Card (4G), > 10,000 pieces |
| Duration of Measurement | User-defined; 5sec, 10sec, 15sec, 30sec, 1min, 2min, 3min selectable |
General Specifications
| Parameter | Specifications |
|---|---|
| Dimensions (H × W × D) | 150 × 235 × 66mm |
| Weight | 1.5KG |
| Temperature | Operating: -10°C to 50°C Storage: -40°C to 70°C |
| Relative Humidity | 0% to 95% (non-condensation) |
| Power Supply | Lithium battery; continuous operation ≥ 8 hours |
Interface Specifications
| Interface Type | Specifications |
|---|---|
| Optical Interface | FC/UPC (PC and APC selectable) |
| Data Interface | USB interface, SD card interface |
Visible Failure Orientation (VFL)
| Parameter | Specifications |
|---|---|
| Wavelength | 650nm |
| Output Power (dBm) | ≥ -3 |
| Maximum Testing Distance | 3KM |
Technical Notes
- Technical specifications describe ensured performance using typical PC model connector measurements
- Dynamic range measured under maximum pulse width and minutes of average time conditions
- Blind zone measurement conditions: reflection event within 4km, reflection strength < -45dB, measured by minimum pulse width
- Dynamic range measured with and without filter
OTDR Meter Features
- Automatic Measurement Mode: Automatic parameter setting, trace data saving, and analysis
- Multi-wavelength Measurement Mode: Automatic wavelength switching for attenuation analysis
- Trace Fixing Function: Same-screen comparison of real-time and average measurement traces
- Multi-wavelength Analysis: Comparison, display, and analysis of any trace file
- FTTx online testing with splitter and fiber end identification
- Large-capacity lithium-ion battery with >8 hours standby time
- Bellcore file format (.sor) with >10,000 trace storage capacity
- Communication Light Detection for equipment protection
- Connection State Detection for prompt status monitoring
- Flexible measurement mode switching via shortcut keys
OTDR Traces Manager PC Software
- Bulk amendment and batch printing capabilities
- Custom test report generation based on user requirements
- Flexible printing modes: single-page single-trace, batch printing, single-page multi-trace, multi-waveform display
- Personalized printing options and page setup
- Waveform Difference Comparison: Multiple waveform display in same window for parameter change analysis
