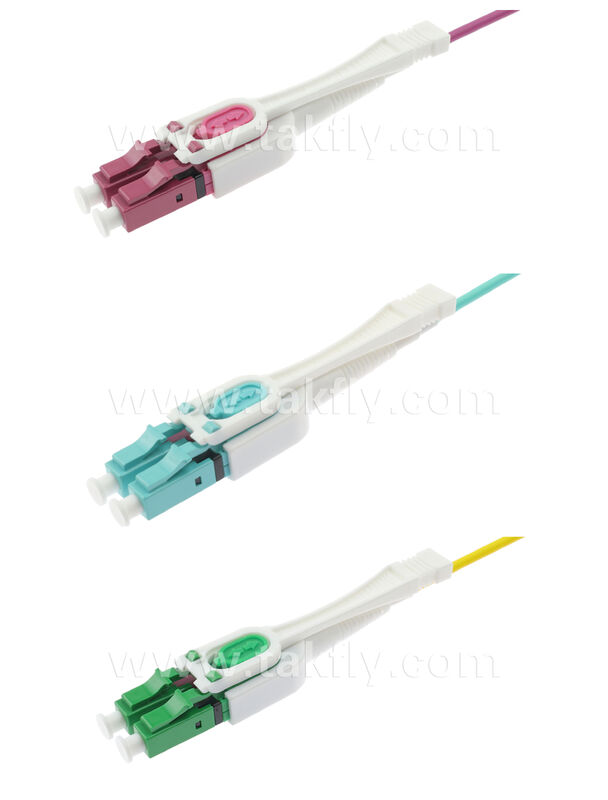

LC Uniboot Patch Cord with Polarity Switchable Low Insertion Loss and High Density Design for Data Centers
उत्पाद विवरण:
| ब्रांड नाम: | Takfly/DF |
| प्रमाणन: | CE, ROHS, ISO14001, ISO9001, CPR,ANATEL,REACH |
| मॉडल संख्या: | टीके-एमपीओ-पीसी |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| पैकेजिंग विवरण: | अंतर्राष्ट्रीय निर्यात पैकिंग |
| प्रसव के समय: | 1-3 कार्य दिवस (मात्रा पर निर्भर करता है) |
| भुगतान शर्तें: | टीटी 100% |
| आपूर्ति की क्षमता: | 3000 पीसी/दिन |
|
विस्तार जानकारी |
|||
| म्यान सामग्री: | पीवीसी | संचालन तरंग दैर्ध्य: | 1310/1550NM |
|---|---|---|---|
| निविष्ट वस्तु का नुकसान: | 0.3db | परस्पर: | ≤0.2dB |
| विचारों में भिन्नता: | टाइप ए, बी, या सी | फाइबर की मात्रा: | 24 |
| तरीका: | एसएम एमएम | लौह सामग्री: | चीनी मिट्टी |
उत्पाद विवरण
LC Uniboot Series – Polarity Switching Patch Cord
This high-performance fiber optic patch cord features a polarity-switchable uniboot design, enabling efficient cable management and simplified polarity conversion without the need for additional tools. Its innovative uniboot construction integrates two fibers into a single pull-proof boot, significantly reducing cable bulk and improving airflow in high-density environments. Engineered for reliable connectivity, this patch cord delivers exceptional optical performance, ensuring low insertion loss and high return loss for stable, high-speed data transmission. Ideal for data centers and telecommunications applications, it combines space-saving design with operational flexibility to support evolving network infrastructures.
Technical Features
- Low insertion loss and high reflection loss
- Good durability and good exchange ability
- Polarity switchable
- High temperature stability
- Standard: Telcordia GR-326-CORE
Applications
- Local area networks (LANS)
- Wide area networks (WANS)
- Data processing networks
- Telecommunication networks
- Active device termination
- Test equipment
- CATV
Technical Parameters
| Parameter | Specification |
|---|---|
| End face type | UPC |
| Fiber type | SM (G652, G655, G657); MM (OM1 OM5) |
| Cable Diameter | 2.0/3.0mm or customized |
| Insertion loss | ≤ 0.3dB |
| Return loss | UPC SM ≥ 50dB, UPC MM ≥ 35dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Strength Member | Kevlar |
| Tensile strength | >60N |
| Ferrule | 1.25mm (CCTC) |
| Operating Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| Outer Sheath Material | PVC, LSZH |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
Relevant Solutions
Designed for direct use in ONU applications, this easy-to-operate connector features a fastening strength exceeding 5 kg, ensuring secure and reliable installation. It is widely adopted in FTTH projects for network upgrades, helping reduce the need for sockets and adapters, thereby lowering overall project costs.
Compatible with 86-standard sockets and adapters, the solution enables seamless connections between drop cables and patch cords. The 86-standard socket is engineered with a unique design that delivers comprehensive protection for the connection interface.
Technical Support and Services
We assist customers in selecting the most suitable fiber optic connectors for their specific applications, providing expert technical consultation and guidance throughout the installation process. Our comprehensive after-sales support includes maintenance services to ensure long-term reliability. We are committed to delivering the highest quality fiber optic connector products, backed by 24/7 customer service and a robust warranty program.
Packaging and Shipping
Packaged in cardboard box with foam padding for protection. Shipped via reliable carrier. All orders shipped within 24 hours of payment.
Frequently Asked Questions
Purchasing Process & Payment
How do I place an order?
Our standard process is as follows:
- Please send us your inquiry including product name, specifications, quantity, and destination port (for FOB/CIF/CFR quotes)
- We will provide a formal quotation with lead time
- Upon confirmation, we will issue a Proforma Invoice (PI) with our bank details
- Production commences after receipt of payment
- We will confirm the consignee details with you before shipping
- A tracking number will be provided upon dispatch
What are your payment terms?
We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, we can arrange 50% deposit with the balance due before delivery.
Orders & Logistics
What is your MOQ?
Our minimum order quantity starts from 1 piece. Please note that pricing becomes significantly more competitive with larger volumes.
What are your lead times?
Lead times depend on the product and order quantity. For standard items like fiber optic patch cords (up to 5,000 pcs), production typically takes 2-3 business days. We maintain stock for regular products and can accommodate urgent requests.
Can I request a sample?
Yes. Samples for products valued under $10 USD are complimentary; the customer is responsible for shipping costs, which must be settled prior to dispatch.
Can you quote FOB prices?
Certainly. We provide FOB quotes and can ship via air (DHL, TNT, UPS, FedEx) or sea for bulk orders. Once we receive your detailed requirements and quantity, we will provide a comprehensive quotation with freight and lead time.
Products & Services
Can you offer OEM/ODM services?
Yes, we accept OEM/ODM for all products and can sign a Confidentiality Agreement to protect your designs.
How is your quality assured?
We adhere to IEC and European standards and hold certifications including CE, ISO, RoHS, CPR, and ANATEL. All products undergo 100% testing prior to delivery.
What is your warranty policy?
Warranty terms vary by product. For example, our patch cords carry a standard 1-year warranty against non-artificial defects from the date of delivery. We also offer free repair for accidental damage; customers are responsible for associated shipping costs.
What is your packaging?
We use standard export-grade packaging. Custom logo printing is available upon request; please inform us prior to quotation.
Company Overview
Are you a manufacturer?
Yes, we are a manufacturer and total solutions provider for FTTH and data center applications, founded in 2000 and based in Shenzhen, China.
