1U-19 inch MPO/MTP High-Density rack-mount fiber patch panel for Data Center Application
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | शेनझेन, चीन |
| ब्रांड नाम: | Takfly/OEM |
| प्रमाणन: | CE, ROHS, REACH, ISO9001, ISO14001 |
| मॉडल संख्या: | टीके-एचआरएस-1096ई |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा |
|---|---|
| मूल्य: | Can be negotiated |
| पैकेजिंग विवरण: | पीपी बैग + कार्टन बॉक्स / प्लास्टिक बॉक्स + कार्टन बॉक्स |
| प्रसव के समय: | 3-7 कार्य दिवस |
| भुगतान शर्तें: | वेस्टर्न यूनियन, मनीग्राम, एल/सी, टी/टी |
| आपूर्ति की क्षमता: | 3000 पीसी / सप्ताह |
|
विस्तार जानकारी |
|||
| प्रोडक्ट का नाम: | एमपीओ एमटीपी पैच पैनल | योजक: | नियंत्रण रेखा |
|---|---|---|---|
| केबल व्यास: | 0.9/0.6मिमी | मॉडल नंबर: | एसएम एमएम |
| आवेदन: | डेटा सेंटर | निविष्ट वस्तु का नुकसान: | ≤0.2dB |
| फाइबर गिनती: | यूएसटीसी | वापसी हानि: | ≥20dB |
| प्रमुखता देना: | 1U 19 inch MPO patch panel,MTP high-density fiber panel,rack-mount fiber patch panel |
||
उत्पाद विवरण

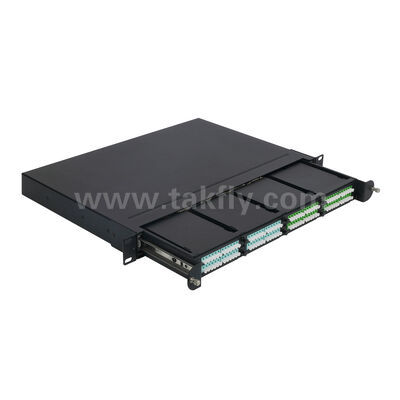

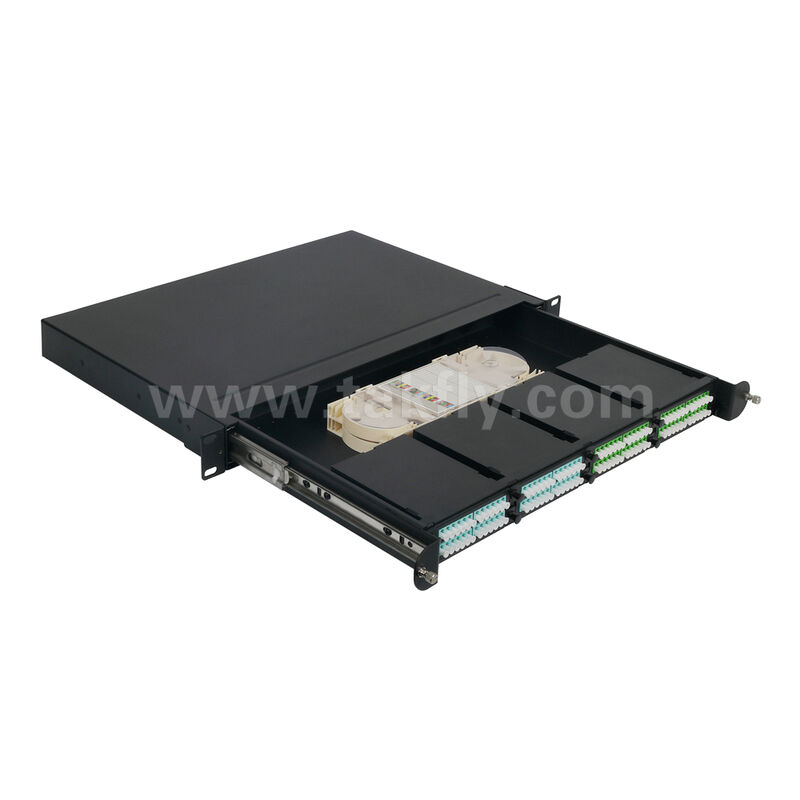

1U-19 inch MPO/MTP High-Density Rack-Mount Fiber Patch Panel
Product Overview
This 1U-19 inch MPO/MTP high-density rack-mount fiber patch panel is engineered for large data center applications including MDF installations, IDF wiring areas for optical fiber backbone connections, fiber distribution unit management, and other high-density integrated fiber environments. Designed for installation in standard 19-inch racks and cabinets.
Key Features
- Constructed from high-quality aluminum alloy with durable electrostatic coating
- Compatible with 19-inch rack-mount and cabinet installations for centralized cassette module management
- 1U high-density design supporting 96 fibers for LC interface
- Available with male or female MPO/MTP connectors with precise PIN and adapter connections
- Modular design with plug-in locking structure and clear line sequence identification
- Compact, lightweight construction with impact-resistant, flame-retardant, and corrosion-resistant properties
Technical Specifications
Applications
- Optical fiber communication dense wiring systems between buildings
- Optical link interconnection in LAN cabling for active equipment
- Telecommunication base stations
- Data center rooms in industrial and commercial buildings
- CATV, LAN, WAN, and FTTX networks
Capacity Information

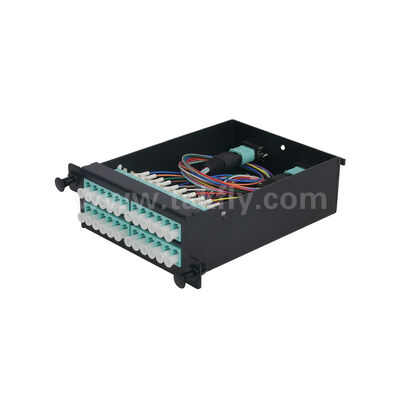

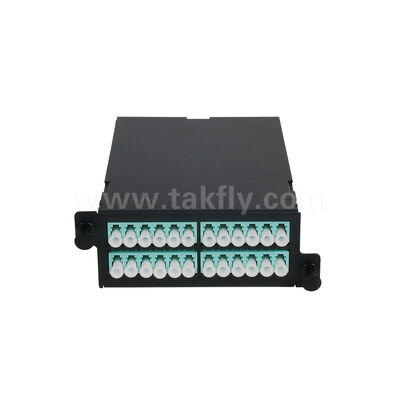

The 1U 19-inch MPO/MTP Patch Panel accommodates 4 pre-connected cassette modules, with maximum capacity of 1152 cores for MPO interface or 96 cores for LC interface. Each independent pre-terminated module box is placed within the optical fiber distribution frame to create a complete patch panel system.
Frequently Asked Questions
What is Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP is a high-performance connector used in fiber optic cabling systems, manufactured in Shenzhen, China.
What are the benefits of Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP offers superior performance, increased density, and cost savings for high-density cabling applications.
What types of applications can Takfly/OEM MPO/MTP be used for?
Suitable for data centers, telecommunications, and other high-density cabling systems requiring reliable fiber optic connections.
What are the advantages of Takfly/OEM MPO/MTP?
Provides improved speed, increased reliability, and higher density compared to traditional fiber optic connectors.
What is the warranty for Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP comes with a comprehensive one-year warranty.
