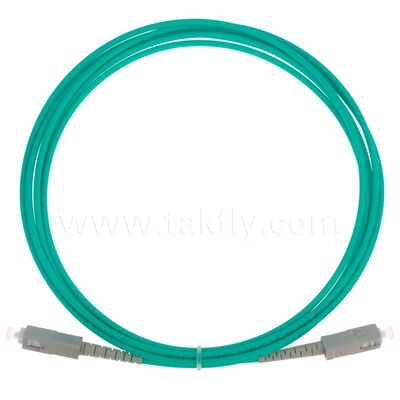

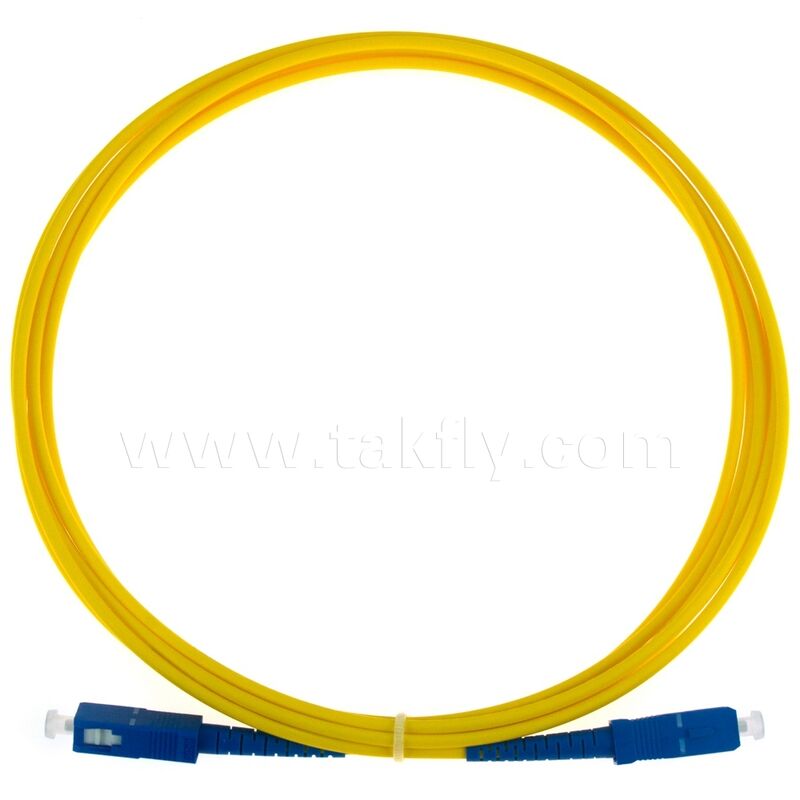

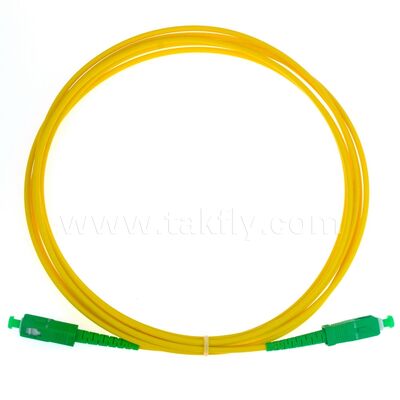

Type SC Fiber Optic Patchcord and Pigtai
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | DF/OEM/Nuetral |
| प्रमाणन: | CE/ROHS/REACH/ISO9001/ISO14001 |
| मॉडल संख्या: | TK-CS-3.0-1M |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 100 पीसी |
|---|---|
| मूल्य: | US$0.01~2.79/PC |
| पैकेजिंग विवरण: | मानक पैकिंग निर्यात करें |
| प्रसव के समय: | 5-9 कार्य दिवस मात्रा पर निर्भर करता है |
| भुगतान शर्तें: | वेस्टर्न यूनियन, टी/टी, मनीग्राम/पेपैल |
| आपूर्ति की क्षमता: | 10000 पीसी/दिन |
|
विस्तार जानकारी |
|||
| प्रोडक्ट का नाम: | एसटी से एलसी ओएम1 ओएम2 फाइबर ऑप्टिक डुप्लेक्स पैच कॉर्ड | अंतर्विरोध हानि: | ≤0.3dB |
|---|---|---|---|
| वापसी हानि: | पीसी एमएम ≥ 35 डीबी | फाइबर प्रकार: | OM1/OM2 |
| व्यास: | 3.0 मिमी | कनेक्टर प्रकार: | पीसी/यूपीसी |
| भुगतान की शर्तें: | एलएसजेडएच/पीवीसी/पीयू | रंग: | नारंगी या अनुकूलित |
| वेवलेंथ: | 1310एनएम, 850एनएम | लंबाई: | 1 मी या अनुकूलित |
| ऑपरेशन तापमान: | -40 ℃ ~ 80 ℃ | फाइबर व्यास: | 50/125 |
| श्रेणी: | दूरसंचार ग्रेड | प्रमाणपत्र: | सीई/आरओएचएस/पहुंच |
| उत्पादन क्षमता: | 10000 पीसी/दिन | ||
| प्रमुखता देना: | SC fiber optic patchcord with warranty,fiber optic pigtail SC connector,durable SC fiber optic patchcord |
||
उत्पाद विवरण
Type SC Fiber Optic Patchcord and Pigtail
High-quality Type SC Fiber Optic Patchcords and Pigtails designed for reliable performance in various networking applications.
Product Features
- Type SC Fiber Optic Patchcord and Pigtail configurations
- Single mode and Multimode options with PC, UPC, or APC polishing
- Multiple cable diameters: 0.9mm, 2.0mm, 2.4mm, or 3.0mm
- Available in simplex, duplex, and multi-core configurations (4, 6, 8, 12, 24, 48 core)
- Custom order lengths available
- Cable colors: green, yellow, orange, or customized designs
- Cable materials: PVC, Hytrel, LSZH, OFNP, OFNR
- All parts compliant with ROHS standards
- IEC standard compatible
- GR-326-CORE compliant
Applications
- Telecommunication systems
- CATV networks
- LAN & WAN infrastructure
- Network installations
- Broadband connectivity
- FTTH deployments
Appearance & Dimensions
Figure 1: SC-SC Patchcord 0.9mm
Figure 2: SC-SC Patchcord 2.0/3.0mm
Performance Parameters
| Item | Mode Type | PC | SPC | UPC | APC |
|---|---|---|---|---|---|
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
| Repetition Test | Additional Loss≤0.1dB, Return Loss Variability<5dB | ||||
| Temperature Stability (-40℃～85℃) | Additional Loss≤0.2dB, Return Loss Variability<5dB | ||||
| Operating Temperature | -40℃～+75℃ | ||||
| Storage Temperature | -40℃～+75℃ | ||||
Order Information
| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
|---|---|---|---|---|---|
| H02 | 1. SM Simplex 2. MM Simplex 3. APC Simplex 4. SM Duplex 5. MM Duplex 6. APC Duplex |
1. 0.9 2. 2.0 3. 3.0 |
1. 9/125 2. OM3 3. 50/125 4. 62.5/125 |
1. Yellow PVC 2. Orange PVC 3. White PVC 4. Yellow LSZH 5. Orange LSZH 6. White LSZH |
1. Blue 2. Beige 3. Green 4. Black 5. Blue and Yellow 6. Red and Black |
Why Choose TAKFLY
Our products are installed in major worldwide projects and trusted by leading operators. We maintain long-term partnerships with industry leaders including Lapp, Amper, Telefonica, Orange, Corning, Amphenol, SENKO, and Ericsson.
We welcome all inquiries and promise high quality, competitive pricing, and fast delivery service regardless of order size.
Frequently Asked Questions
- What's your MOQ?
MOQ can be 1 piece, but pricing becomes more competitive with larger quantities. - What's your lead time?
For fiber optic patch cords: 2-3 working days for up to 5,000 pieces. We maintain regular product stock and can accommodate urgent orders. - Are you a manufacturer?
Yes, we are a manufacturer and FTTH solution/data center total solution provider in Shenzhen, China, established in 2000. - How is your quality?
Our production follows IEC and European standards with CE, ISO, RoHS, CPR, and ANATEL certifications. All products are 100% tested before delivery. - What's your warranty?
1-year warranty for patch cords (non-artificial damage). For artificial damage, we provide free repair with freight paid by customer. - What's your packing?
International export standard packaging. Custom logo printing available upon request. - Can you quote FOB price?
Yes. We deliver by air, DHL, TNT, UPC, FEDEX, etc. Large quantities are shipped by sea. We provide quotes with freight and lead times based on your requirements. - Can you offer OEM/ODM?
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreements. - Can I have a sample?
Free samples available for products under $10. Buyer pays freight. - How can I order?
1. Send inquiry with product details and quantity
2. We provide quotation with lead time
3. Confirm PI with bank account
4. Production begins after payment
5. Confirm consignee details
6. Receive tracking number after delivery - What is your payment term?
T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
