FC-APC Fiber Optic Patch Cord 9/125um Single-Mode 1000N Tensile
उत्पाद विवरण:
| प्रमाणन: | Ce, RoHS, ISO, ISO9001 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | 0.19 |
|
विस्तार जानकारी |
|||
| कनेक्टर प्रकार: | एससी, एफसी, एसटी, एलसी, एमटीआरजे, एमपीओ, एमटीपी, एमयू, एसएमए, ईसीटी | तंतु -प्रकार: | OS1, OS2, OM1, OM2, OM3, OM4 |
|---|---|---|---|
| प्रकार: | सिंगल-मोड फाइबर | संबंध संरचना: | फंसी |
| सामग्री आकार: | गोल तार | तन्य शक्ति की अनुमति दी: | 1000n <10000n |
| मुख्य: | सिंगल कोर | म्यान सामग्री: | PVC या LSZH |
| निविष्ट वस्तु का नुकसान: | ≤0.3 डीबी | वापसी हानि: | ≥45 डीबी |
| परिचालन तरंग दैर्ध्य: | 1310, 1510 एनएम | विनिमय योग्यता: | ≤0.2 डीबी |
| कंपन: | ≤0.2 डीबी | परिचालन तापमान: | -40 ~ 75 .C |
| भंडारण तापमान: | -45 ~ 85 .C | ||
| प्रमुखता देना: | FC-APC fiber optic patch cord,single-mode fiber optic cable 9/125um,1000N tensile fiber optic patch cord |
||
उत्पाद विवरण
These high-speed singlemode 9/125um duplex fiber optic patch cables feature LC/APC connectors on one end and SC/APC connectors on the other (LC/APC-SC/APC). LC connectors (Lucent Connectors) are ideal for high-density connections and compatible with plug-and-play devices like SFP modules and XFP transceivers. SC connectors (Subscriber Connectors) are widely used in FTTH (fiber to the home) applications, Datacom, Telcom, and most GBIC modules.

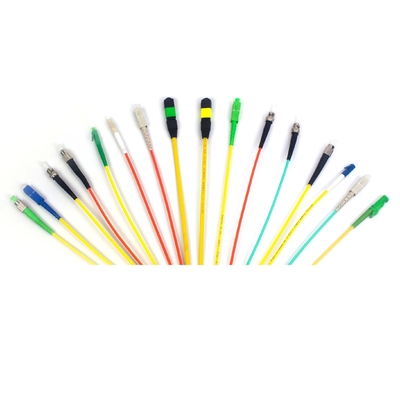

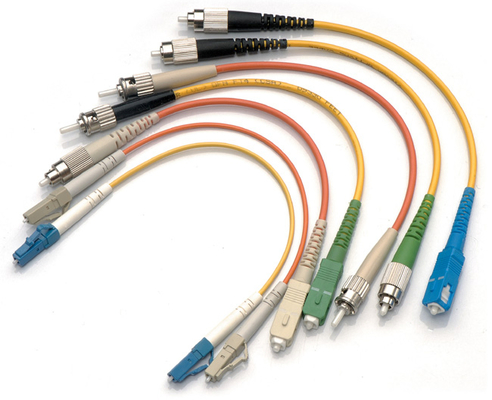

Our fiber patch cables are terminated with premium connectors available in various combinations of ST, SC, LC, and MTRJ with PC, UPC, or APC polish types. Each jumper undergoes rigorous geometric inspection with interferometers and automated insertion loss/reflection testing to guarantee exceptional performance.
- Low insertion loss with high return loss
- Compact, lightweight design for high-density connections
- Manufactured with standard exact plastic material
- Exceptional reliability and stability
- Excellent repeatability and exchangeability
- Testing equipment
- FTTX+LAN networks
- Optical fiber CATV systems
- Optical communication systems
- Telecommunication infrastructure
| Parameter | Unit | FC, SC, LC/ Armoured fiber patch cord | ST, MU | MT-RJ, MPO | E2000 |
|---|---|---|---|---|---|
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |
| Operating temperature | ºC | -40~75 | -40~75 | -40~75 | |
| Storage temperature | ºC | -45~85 | -45~85 | -45~85 | |
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 |

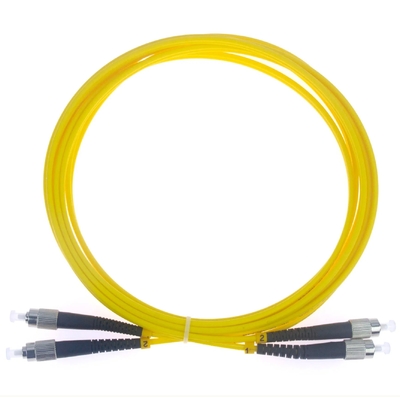

Fiber Optic Patch Cord: FC/APC-SC/UPC/SM/Ø3/L Meter/DX
| (Number) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| Plating material | PVC, LSZH | |||||||
| 1.Connector | FC,SC,ST,LC,MU,SMA,E2000... | |||||||
| 2.Inserted core cover | PC,UPC or APC | |||||||
| 3.Connector | FC,SC,ST,LC,MU,SMA,E2000... | |||||||
| 4.Inserted core cover | PC,UPC or APC | |||||||
| 5.Type | SM or MM | |||||||
| 6.Line diameter (mm) | Ø3, Ø2, Ø1.6, Ø0.9 | |||||||
| 7.Length (m) | L=1.2.3.4.......meter | |||||||
| 8.Classification | SX or DX | |||||||
