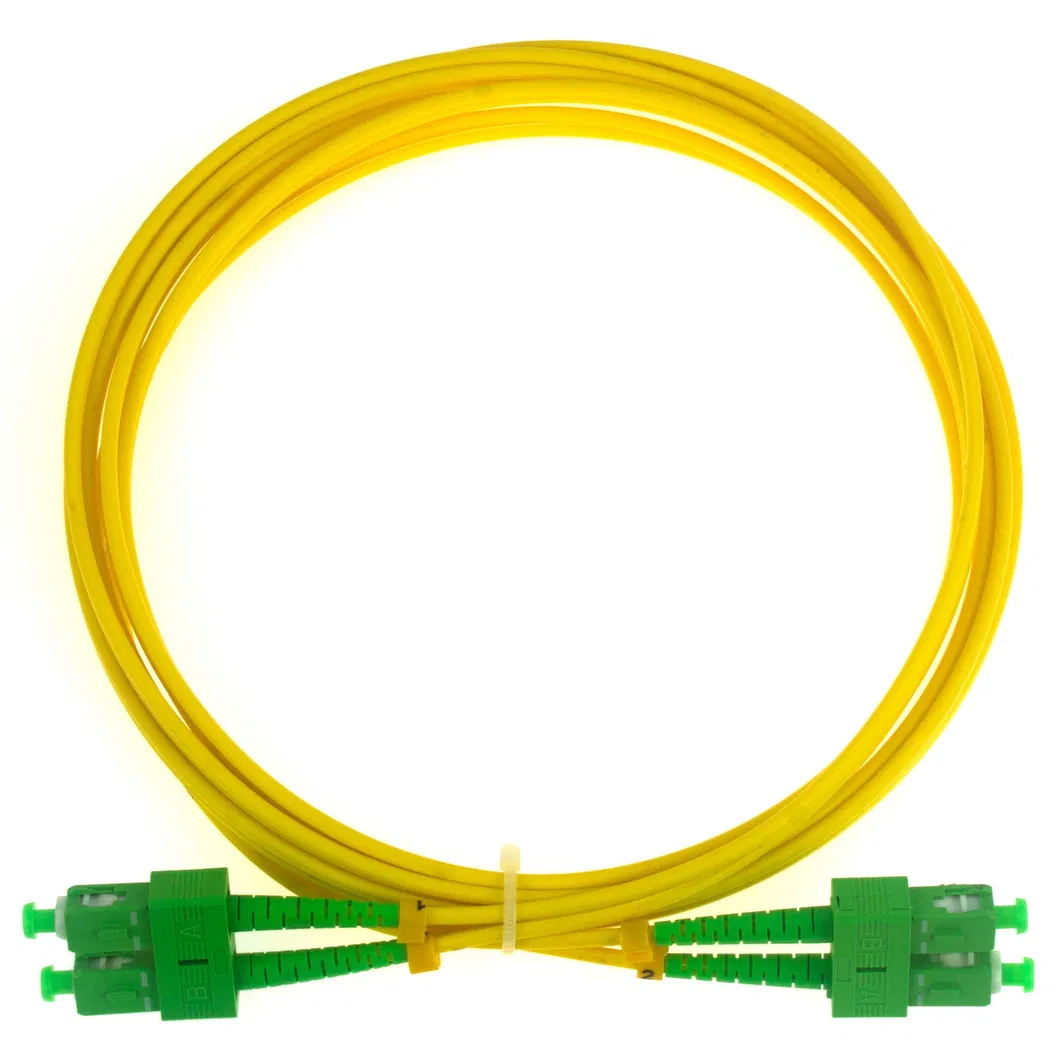

SC/APC Duplex 9/125um Singlemode Fiber Optic Cable 3.0mm PVC
उत्पाद विवरण:
| प्रमाणन: | RoHS, CE, ISO9001, VDE, CCC |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | 1.56 |
|
विस्तार जानकारी |
|||
| संबंध संरचना: | अनुसूचित जाति-अनुसूचित जाति | सामग्री आकार: | गोल तार |
|---|---|---|---|
| पार्श्व दबाव की अनुमति दी: | 100 (एन/100 मिमी) <1000 (एन/100 मिमी) | तन्य शक्ति की अनुमति दी: | 100n <1000n |
| मुख्य: | सिंगल कोर | म्यान सामग्री: | PVC या LSZH |
| कनेक्टर प्रकार: | एससी, एफसी, एसटी, एलसी, एमटीआरजे, एमपीओ, एमटीपी, एमयू, एसएमए, ईसीटी | केबल बाहरी व्यास: | 0.9 मिमी, 1.6 मिमी, 1.8 मिमी, 2.0 मिमी, 2.4 मिमी, 2.8 मिमी, 3.0 मिमी |
| MPO MTP पॉलिशिंग: | पीसी, यूपीसी, एपीसी | तंतु -प्रकार: | OS1, OS2, OM1, OM2, OM3, OM4 |
| केबल जैकेट सामग्री: | PVC, LSZH, OFNP, PE | फाइबर कोर: | एसएक्स, डीएक्स, 4 ~ 144 मल्टी-फाइबर कोर |
| वापसी हानि: | पीसी> 30 डीबी; APC> 50DB | निविष्ट वस्तु का नुकसान: | <0.3 डीबी |
| संचालन तरंग दैर्ध्य: | 850एनएम,1310एनएम,1550एनएम | ||
| प्रमुखता देना: | SC/APC duplex singlemode fiber cable,9/125um fiber optic cable with PVC,3.0mm singlemode fiber optic cable |
||
उत्पाद विवरण
SC/APC Duplex 9/125μm Singlemode Communication Cable
Product Description
High-performance singlemode fiber optic cable with SC/APC connectors, designed for reliable communication networks with low insertion loss and high return loss.
Specifications
- Type: SC-SC
- Polishing: PC (APC/UPC)
- Insertion Loss: ≤0.2 dB
- Return Loss: ≥50dB
- Exchangeability: ≤0.2dB
- Repeatability: ≤0.2dB/1000times
- Operation Wavelength: 850nm, 1310nm, 1550nm
- Operating Temperature: -30°C to +75°C
- Storage Temperature: -40°C to +85°C
- Cable OD: 3.0mm/2.0mm/0.9mm
- Cable Material: OFNR, LDZH & Polarization maintaining
- Mode: 9/125μm
- Fiber Cable Type: PVC 3.0mm
- Available Cores: Single core, dual-core, 4 core, 6 cores, 12 core (customizable)
- Connector Options: FC, SC, ST, LC, MU, MTRJ, E-2000
- Custom Lengths Available
Key Features
- Low insertion loss
- High return loss (low reflection)
- Easy installation
- Cost-effective solution
- High reliability
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Performance Specifications
| Singlemode (UPC) | Singlemode (APC) | Multimode | |
|---|---|---|---|
| Insertion loss | ≤ 0.2dB | ≤ 0.2dB | ≤ 0.25dB |
| Return loss | ≥55dB | ≥65dB | ≥30dB |
| Durability | ≤ 0.1dB typical change, 1000 times mating | ||
| Operating Temperature | -45°C to +85°C | ||
Ferrule Hole Sizes
| Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|
| 125.0+1/-0μm, Concentricity: ≤1.0μm | 125.0+1/-0μm, Concentricity: ≤0.5μm | 125.0μm, Concentricity: ≤3.0μm |
| 125.3+1/-0μm, Concentricity: ≤1.0μm | 125.3+1/-0μm, Concentricity: ≤0.5μm | 127.0μm, Concentricity: ≤3.0μm |
| 125.5+1/-0μm, Concentricity: ≤1.0μm | 125.5+1/-0μm, Concentricity: ≤0.5μm | 128.0μm, Concentricity: ≤3.0μm |
| 126.0+1/-0μm, Concentricity: ≤1.0μm | 126.0+1/-0μm, Concentricity: ≤0.5μm |
Connector Options
| Singlemode 9/125 | Multimode (50/125 or 62.5/125) |
|---|---|
| ST | ST |
| SC | SC |
| FC | FC |
| LC | LC |
| MU | MU |
| MTRJ(female) | MTRJ(female) |
| MTRJ(male) | MTRJ(male) |
| DIN | E2000 |
| E2000 |
