Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन, शेन्ज़ेन |
| ब्रांड नाम: | DF/OEM/Nuetral |
| प्रमाणन: | CE/ROHS/REACH/ISO9001/ISO14001 |
| मॉडल संख्या: | टीके-पीसी-48एफ-एससी-ओएस2-50एम |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | बातचीत योग्य |
|---|---|
| मूल्य: | negotiable denpend on QTY |
| पैकेजिंग विवरण: | ब्लिस्टर बॉक्स+कार्टन |
| प्रसव के समय: | 5-9 कार्य दिवस मात्रा पर निर्भर करता है |
| भुगतान शर्तें: | वेस्टर्न यूनियन, टी/टी, मनीग्राम/पेपैल |
| आपूर्ति की क्षमता: | 1000pcs/दिन |
|
विस्तार जानकारी |
|||
| प्रोडक्ट का नाम: | इनडोर ब्रेकआउट ऑप्टिकल केबल | बाहरी व्यास (मिमी): | 3.0-12.5मिमी |
|---|---|---|---|
| फाइबर गिनती: | 4-48 | कोर सुदृढ़ीकरण: | अराध यार्न |
| सामग्री: | स्टेनलेस स्टील | जैकेट सामग्री: | LSZH/PVC |
| रंग: | सफेद या अनुकूलित | वेवलेंथ: | 1310 एनएम, 1550 एनएम |
| व्यास(±1μm): | 125μM | कोटिंग व्यास(±5μm): | 250 μm |
| प्रचालन तापमान: | -20 ℃ ~ 70 ℃ | लंबाई: | 2000 मी या अनुकूलित |
| फाइबर ब्रांड: | कॉर्निंग, वाईओएफसी, ओएफएस, ड्रेका | ||
| प्रमुखता देना: | Indoor Breakout Optical Cable 2000M,LSZH Fiber Optic Cable,PVC Indoor Optical Cable |
||
उत्पाद विवरण
Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
Product Description
4-48 core branch optical cables (900ym compact buffer fiber, aramid yam is a reinforcement element, 2.0mm innelsheath) are used as a subunit. A fiber-reinforced plastic (FRP) is positioned at the center of the core as a non-metallic strengthening element. The subunit is surrounded by FRP, with a PVC or LSZH material sheath, and the final outer layer is polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low smoke, halogen-free, flame retardant jacket).
Product Applications
- Optical fiber active connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
- Good performance of flame-retardant, low induced attenuation within the operating temperature range
- Meet various requirements of market and clients
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |

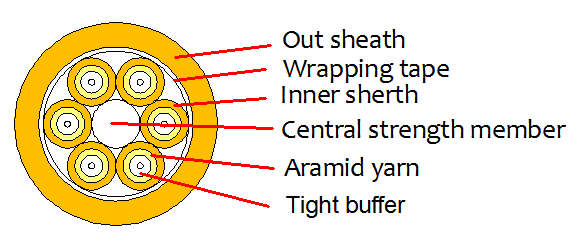

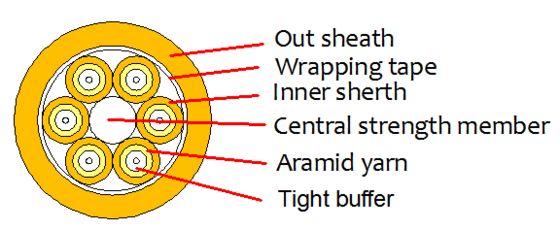

Product Structure
Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
