FTTH-2C Optical Cable Steel wire LSZH
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन, शेन्ज़ेन |
| ब्रांड नाम: | DF/OEM/Nuetral |
| प्रमाणन: | CE/ROHS/REACH/ISO9001/ISO14001 |
| मॉडल संख्या: | टीके-पीसी-48एफ-एससी-ओएस2-50एम |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | बातचीत योग्य |
|---|---|
| मूल्य: | negotiable denpend on QTY |
| पैकेजिंग विवरण: | ब्लिस्टर बॉक्स+कार्टन |
| प्रसव के समय: | 5-9 कार्य दिवस मात्रा पर निर्भर करता है |
| भुगतान शर्तें: | वेस्टर्न यूनियन, टी/टी, मनीग्राम/पेपैल |
| आपूर्ति की क्षमता: | 1000pcs/दिन |
|
विस्तार जानकारी |
|||
| प्रोडक्ट का नाम: | FTTH-2C ऑप्टिकल केबल | फाइबर गिनती: | 2 |
|---|---|---|---|
| ऑप्टिकल फाइबर व्यास(±1μm): | 125μM | ऑप्टिकल फाइबर कोटिंग व्यास(±5μm): | 250 μm |
| शक्ति सदस्य व्यास: | 1.2 मिमी (7 * 0.4 मिमी फंसे गैल्वेनाइज्ड स्टील तार) | कोर सुदृढ़ीकरण: | इस्पात तार |
| अनुपूरक: | अराध यार्न | म्यान म्यान सामग्री: | एलएसज़ |
| रंग: | काला | बाहरी व्यास (मिमी): | 3.5*6.5 |
| केबल वजन (किलो / किमी): | 23 | प्रचालन तापमान: | -20 ℃ ~ 70 ℃ |
| फाइबर ब्रांड: | कॉर्निंग, वाईओएफसी, ओएफएस, ड्रेका | ||
| प्रमुखता देना: | FTTH-2C optical cable steel wire,LSZH fiber optic cable,FTTH-2C LSZH optical cable |
||
उत्पाद विवरण
FTTH-2C Optical Cable Steel wire LSZH
Outdoor FTTH-2C Optical Cable Steel wire LSZH
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit is positioned in the center. A steel wire as the additional strength member is also applied, then, the cable is completed with a black LSZH (low-smoke, halogen-free, flame retardant) sheath.
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit is positioned in the center. A steel wire as the additional strength member is also applied, then, the cable is completed with a black LSZH (low-smoke, halogen-free, flame retardant) sheath.
Product Applications
- Good mechanical and environmental characteristic
- Anti-UV characteristics meet the requirements of relevant standards
- The mechanical characteristics meet the requirements of relevant standards
- Soft, flexible, easy to lay and splice, and with big capacity data transmission
- Meet various requirements of market and clients
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
- The advantages of external protective materials such as corrosion resistance, waterproofing, ultraviolet protection, flame retardant, environmental protection, etc.
- Meet various requirements of market and clients
Optical Parameter and Properties

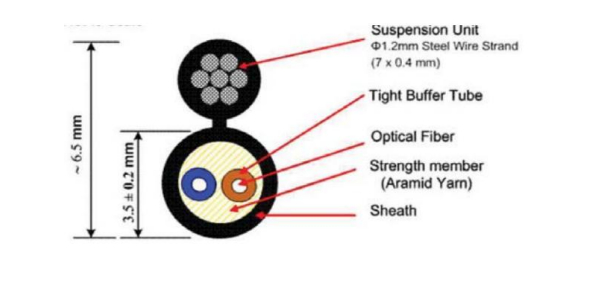

Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as: OPTICAL FIBER CABLE FTTH-2C 3.5X6.5 LSZH MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
